Project Overview

Status: In progress

I'm building this project to automate shiny hunting in Pokemon HeartGold and SoulSilver on a Nintendo DS Lite. The goal is to have a Raspberry Pi 4 watch the screen through a camera, check the Pokemon, and press the buttons needed to repeat the encounter until a shiny appears. The software is written in C++ with OpenCV for image processing.

Rig setup to camera capture to cropped DS screen to green HSV stencil 1. RIG 2. CAPTURE 3. CROP 4. STENCIL

Context

Shiny Pokemon have different colors from their normal versions. For a soft-reset hunt, you save before an encounter, check the Pokemon, then reset and try again if it isn't shiny. This project is meant to handle that repeated process on the actual DS hardware.

I chose to check the Pokemon's colors instead of looking for the brief sparkle animation. The Pokemon stays on screen, which gives the program more time to check it. The intended behavior is to reset only when the Pokemon is confirmed not shiny. If the result is unclear, the program should stop so it doesn't reset over a shiny.

Current Implementation

So far, I've focused on capturing the screen and building the image processing needed to read it. The full hunting process is not connected yet.

  • Screen capture: Added camera input through libcamera and code to locate, straighten, and crop the DS top screen for processing.
  • Image replay: The application can run through saved camera photos, so I can work on image processing without the camera connected.
  • Battle detection work: Added health-bar detection as a step toward recognizing when the game is in a battle.
  • Ho-Oh reference data: Added normal and shiny reference sprites and an initial set of color thresholds. The shiny classifier is still to be implemented and validated with real shiny captures.
  • Tests: Added GoogleTest tests for capture and vision, with recorded images from day, sunset, and night encounters.

Behind the Scenes: One Frame

The screenshots below show how a single captured frame moves through the current processing pipeline, from the raw image to a cropped, stenciled output.

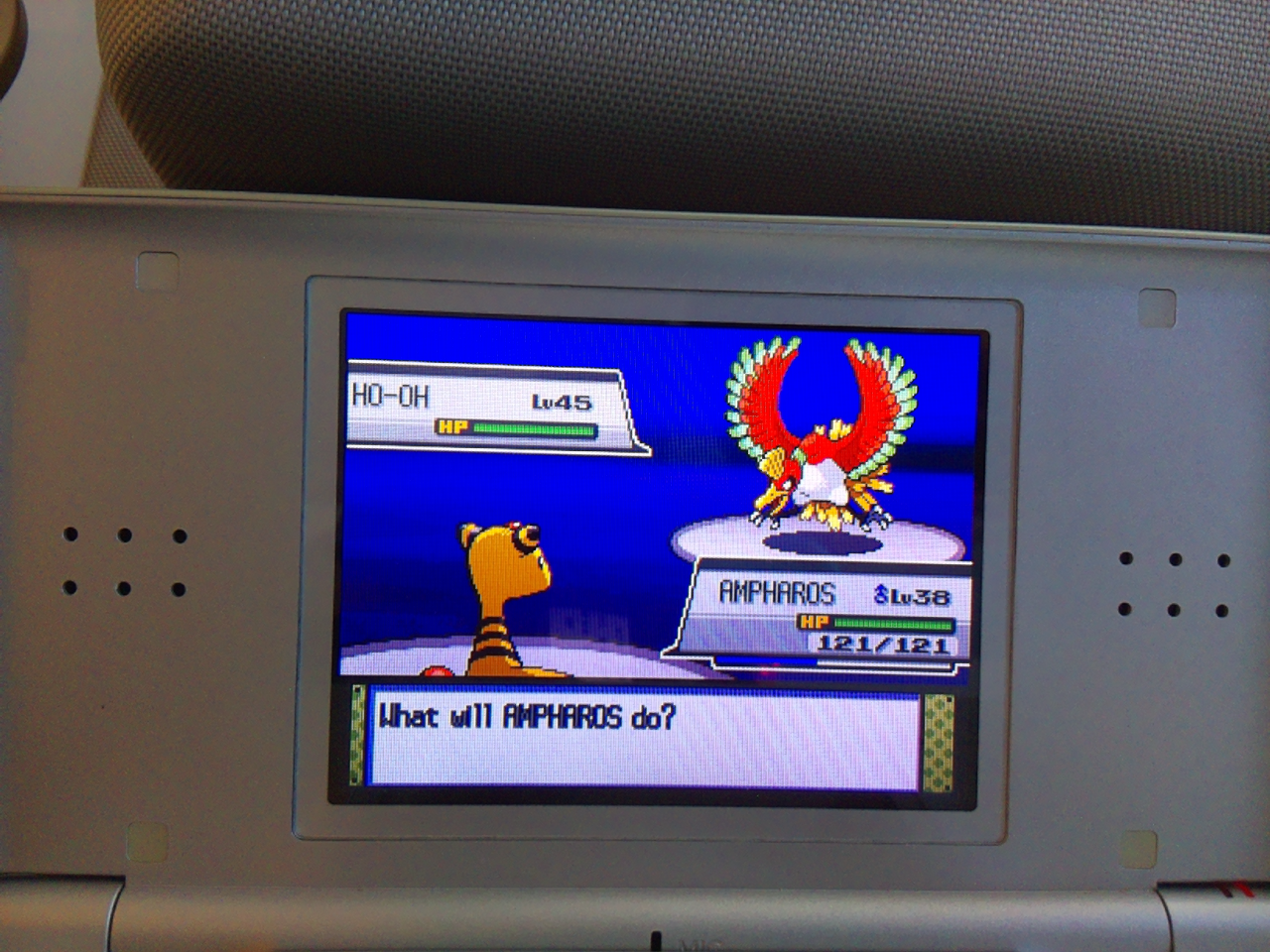

Original camera photo, including the DS Lite casing around the battle screen
1. Camera photo. The input includes the DS casing and a slightly tilted screen.

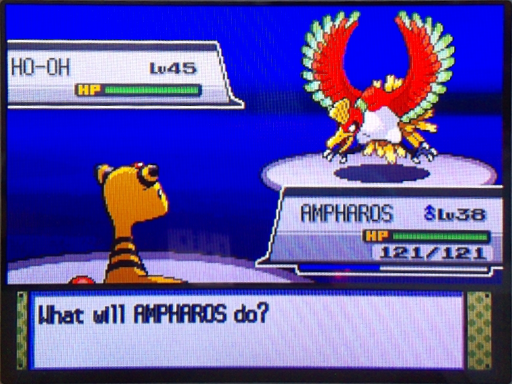

DS top screen cropped and straightened, showing Ho-Oh and Ampharos
2. Cropped screen. The screen locator finds the four corners and straightens the image to 512 × 384 pixels.

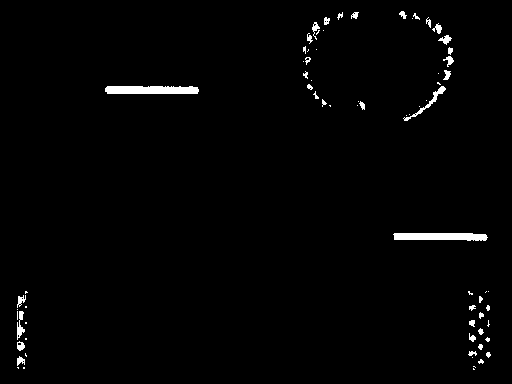

Full-screen green HSV stencil showing both health bars and other matching pixels in white
3. Green stencil. White pixels match the chosen green HSV range; black pixels fall outside it. The health bars stand out, along with some other parts of the screen.

The health-bar detector checks only the two expected health-bar regions for a horizontal run of at least 70 pixels, allowing gaps of up to two pixels for camera noise. This checks for green health bars; it doesn't tell us whether the Pokemon is shiny.

Equipment and Rig Setup

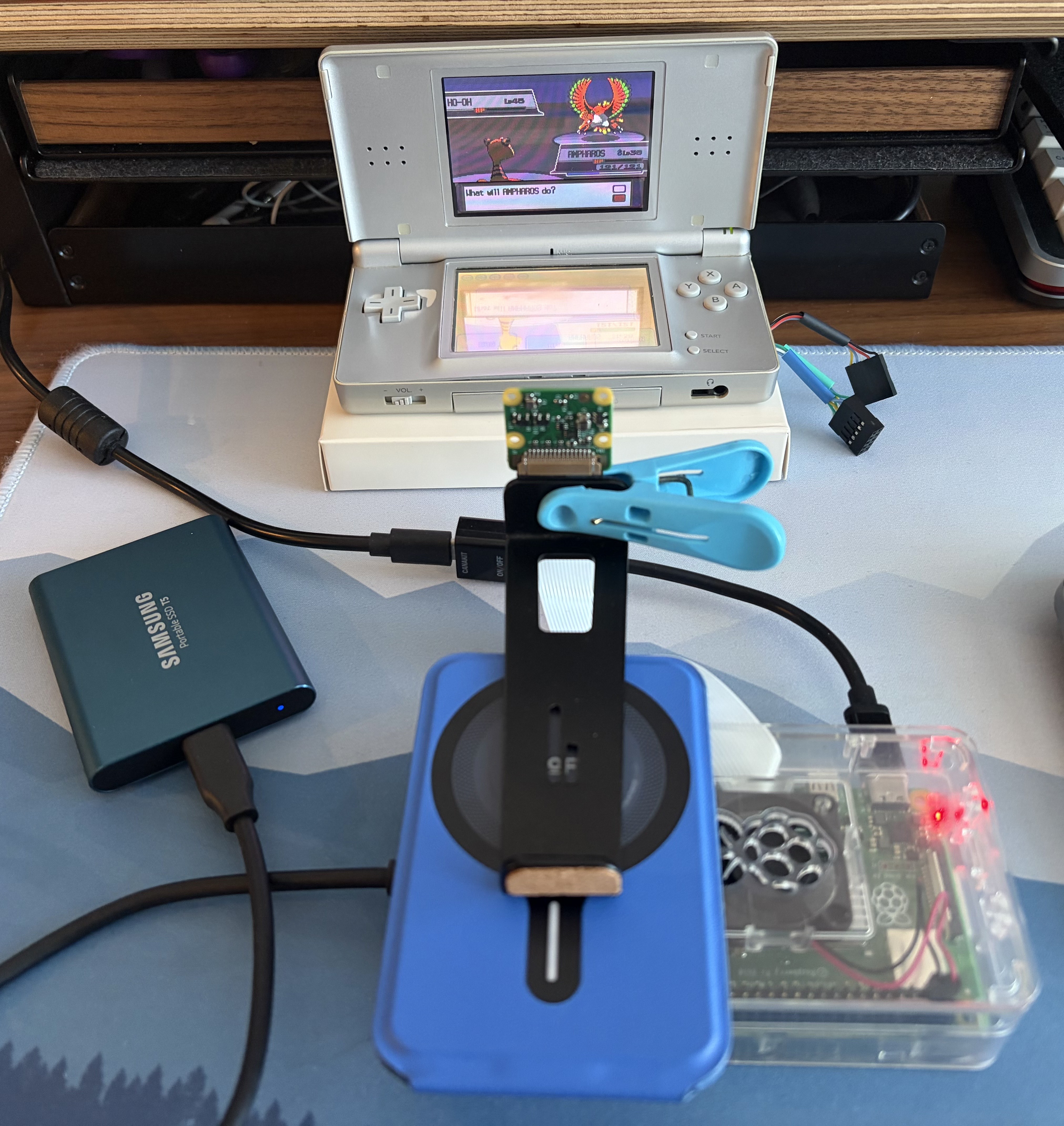

DS Lite facing a camera held by a clip and stand, with the Raspberry Pi beside it
The current setup on my desk.

I'm using a Nintendo DS Lite, a Raspberry Pi 4, and a Raspberry Pi Camera Module V2 aimed at the top screen. For now, a clip and stand hold the camera in place, and a box raises the DS to the right height. It's a simple setup, but it works for the capture work I'm doing.

The DS has thin wires connected to its button test points, with female connectors coming out through the stylus compartment. This gives me a place to connect the button-control circuit while keeping the original buttons usable.

I might 3D print an enclosure to hold everything together later. If this setup stays stable enough, I may just keep using it.

Bringing the button connections outside

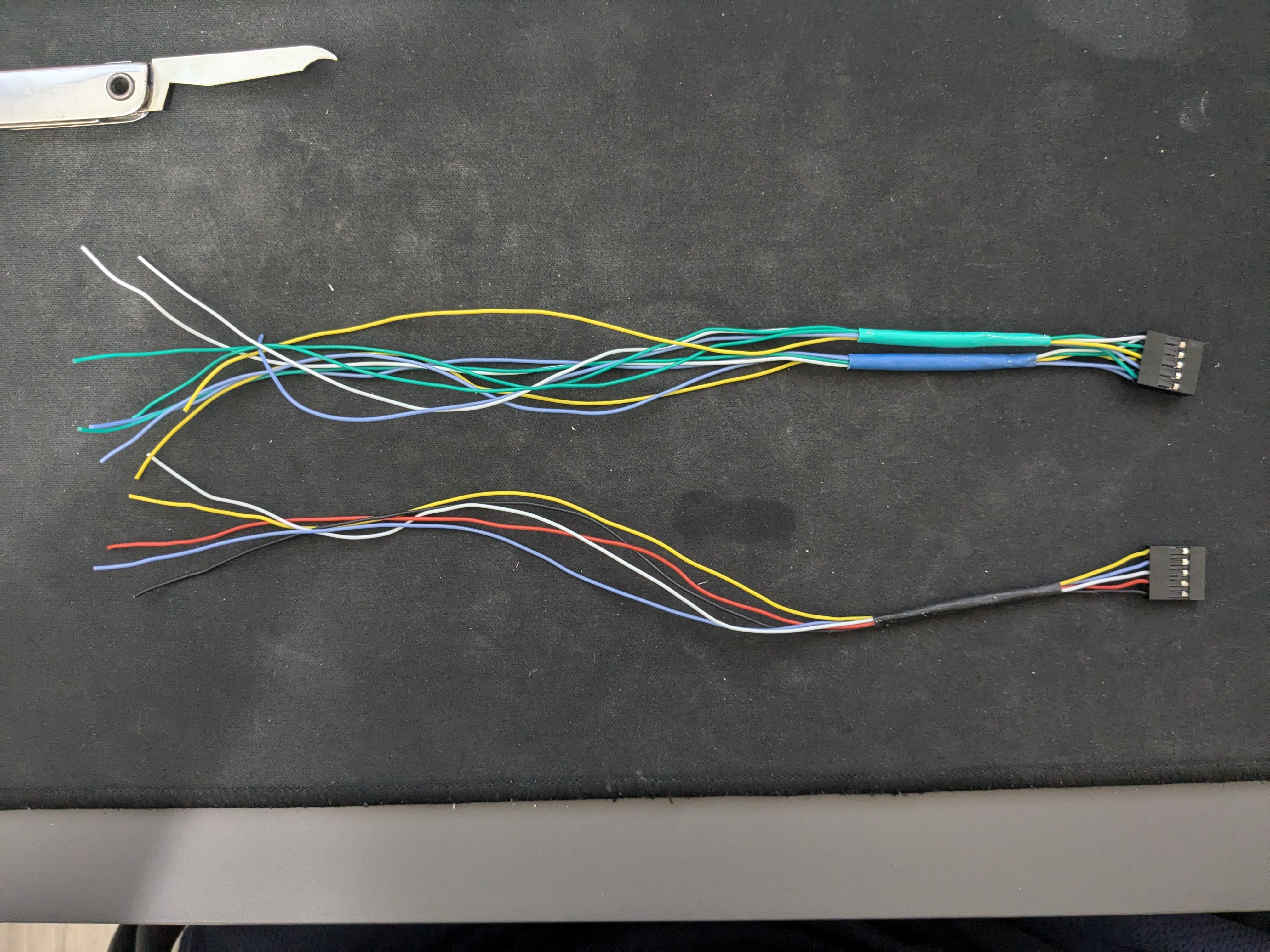

Thin wires grouped into two cables with female connectors
1. Preparing the wires. I used thin jumper wires so they could fit inside the DS shell, with female connectors on the outside ends.

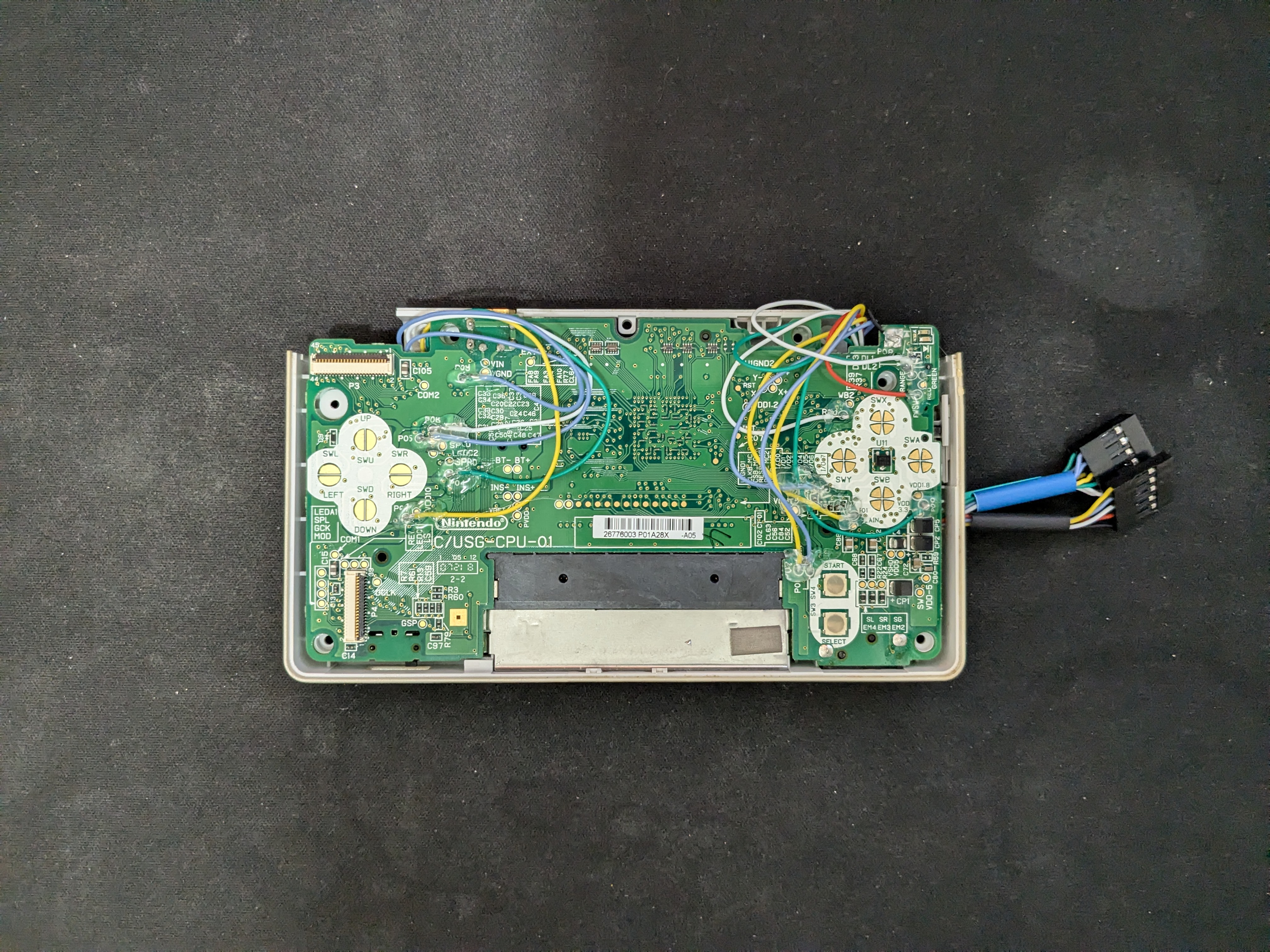

Wires soldered to test points on the DS circuit board and held with hot glue
2. Connecting to the board. I soldered the wires to the button test points and used hot glue to keep them from moving and pulling on the solder pads.

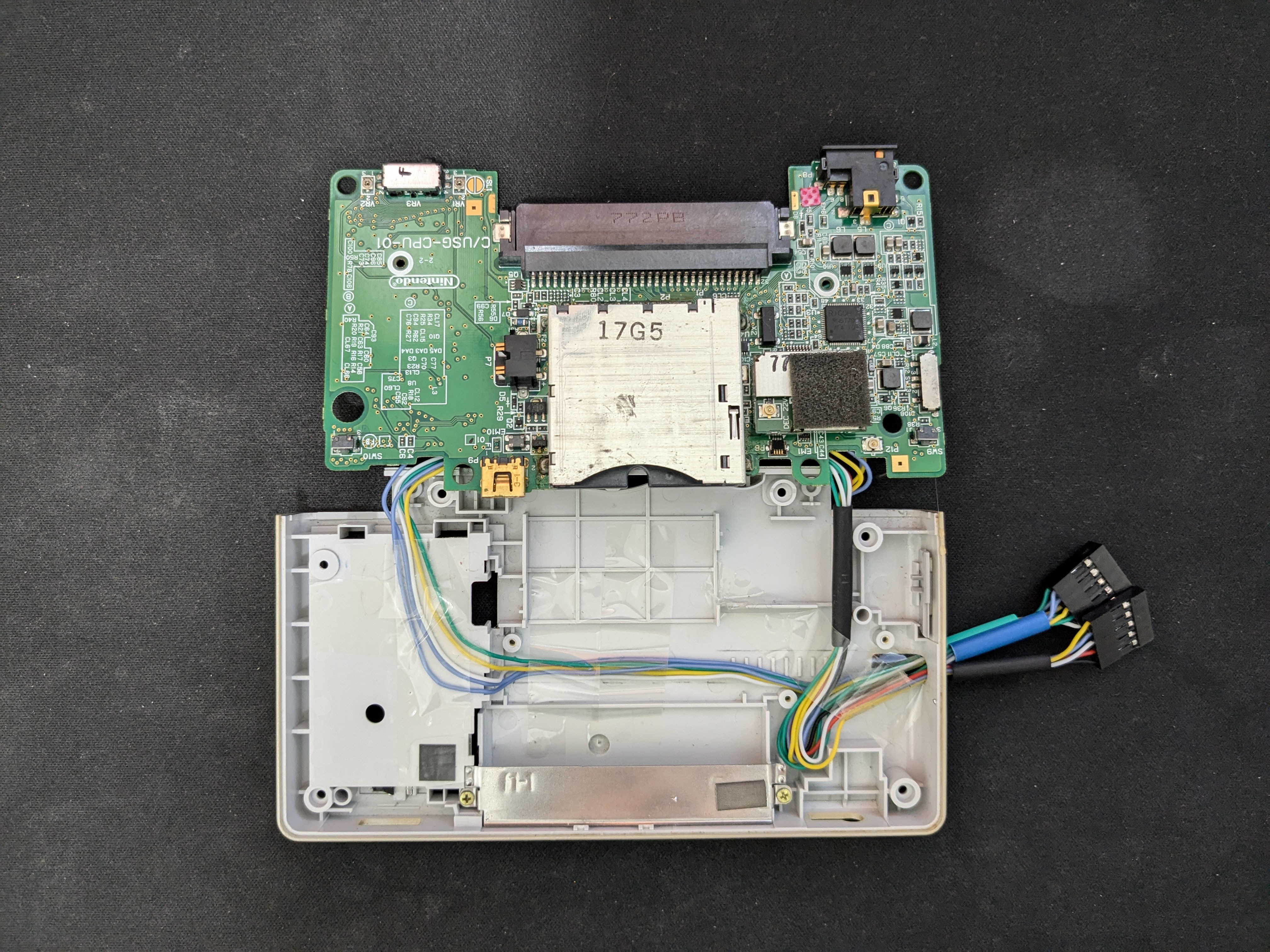

Wires routed inside the DS shell toward the stylus compartment
3. Routing the cables. I arranged the wires inside the shell so the connectors could come out through the stylus compartment.

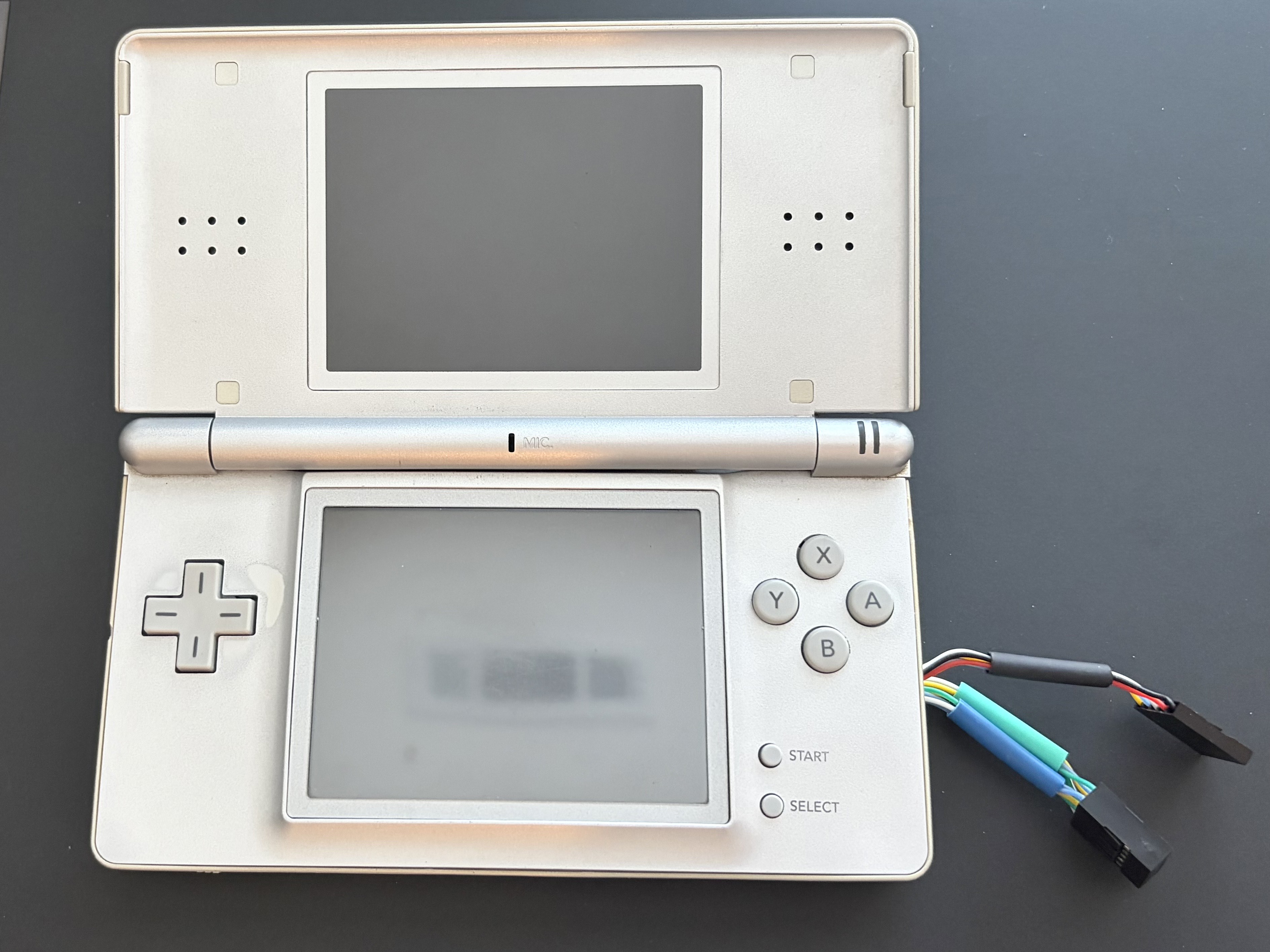

Reassembled Nintendo DS Lite with button connectors exposed at the side
4. Putting the DS back together. The original shell fits back on, and all the buttons still work. The exposed connections give an external circuit access to those buttons; the automated button-control software is still planned.

Checking the camera view

Before starting a capture run, I SSH into the Raspberry Pi from my Linux computer and start a camera stream. I view it with ffplay over TCP to check the framing and camera angle. This is a separate setup step for now; I don't have a live preview while the capture application is running.

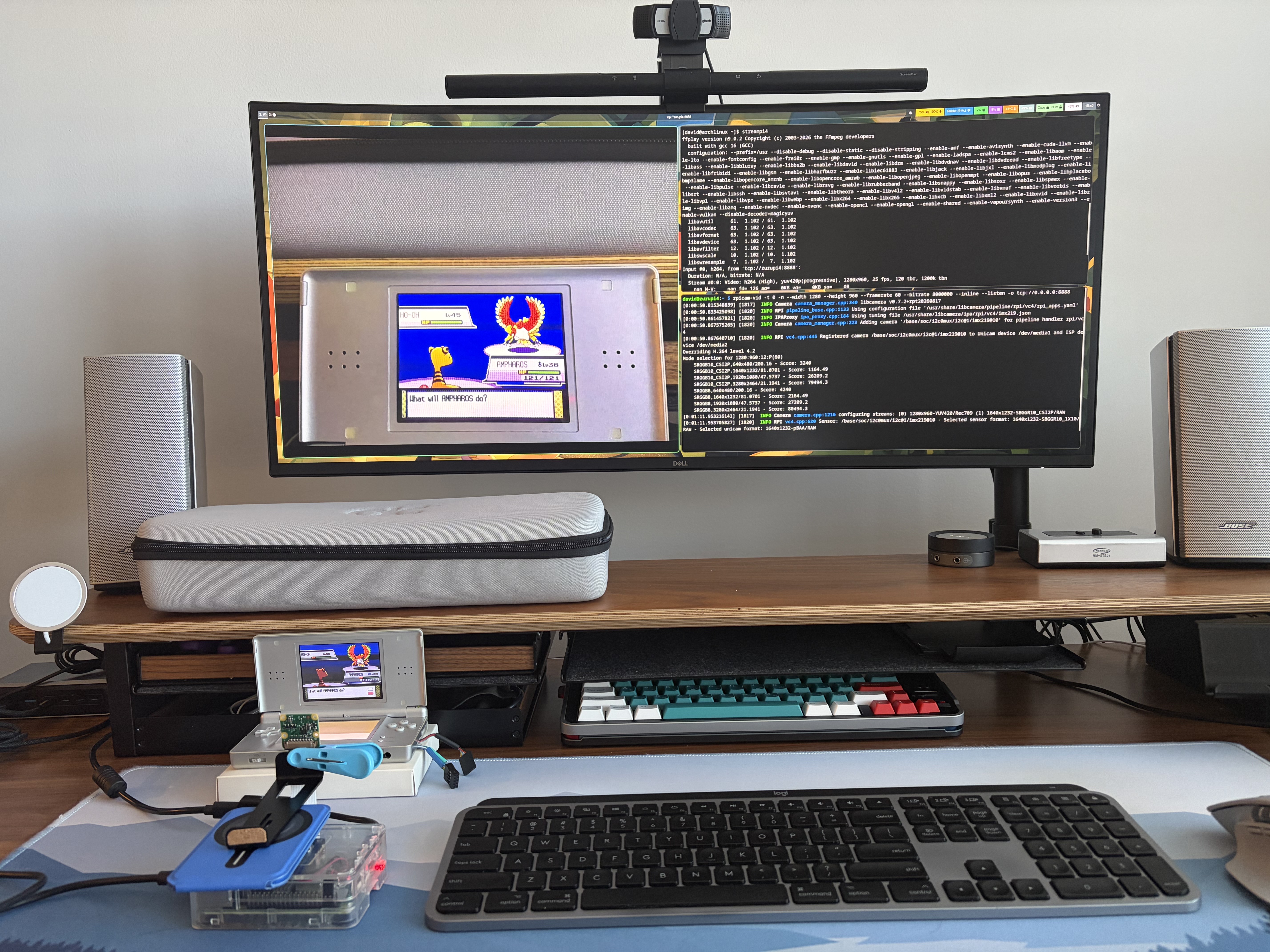

Desktop monitor showing the DS camera preview beside terminals, with the rig below
The camera preview lets me check that the top screen is in view before running the application.

Current Challenges

  • The Camera Module V2 has manually adjustable focus. Since there's no live preview during a run, I check the camera preview beforehand for blur and make sure the contrast looks right, not too dark or washed out
  • When I add GPIO control, I want to explore the delay between capturing a frame, processing it, and pressing a button. The game may have moved on by the time an action happens
  • During an encounter, I want to avoid inputs like A that could trigger an attack while the next frame is still being checked

Next Steps

  1. Finish recognizing the game screen and checking whether the Pokemon is shiny, including cases where the image is unclear.
  2. Add the hunt logic and GPIO button control for emulating DS button presses.
  3. Connect capture, detection, and button presses into one loop, then test a complete soft-reset hunt on the DS.

Code

Code and build instructions can be found in my GitHub repository.
