Overview


I built this wearable device to give a reminder when I slouch. It sounds a buzzer if slouching lasts at least seven seconds. I chose that delay so brief movements wouldn't trigger an alert.

I used the existing SEFR algorithm with the micromlgen library, following Eloquent Arduino's guide. I trained the classifier on 600 samples: 300 slouching and 300 non-slouching.

I lowered the Arduino Pro Mini's clock speed and removed unused LEDs to reduce power use. The battery lasts up to about 4.5 days under ideal conditions. A power switch and charging module make it easy to turn off and recharge.

Pictures

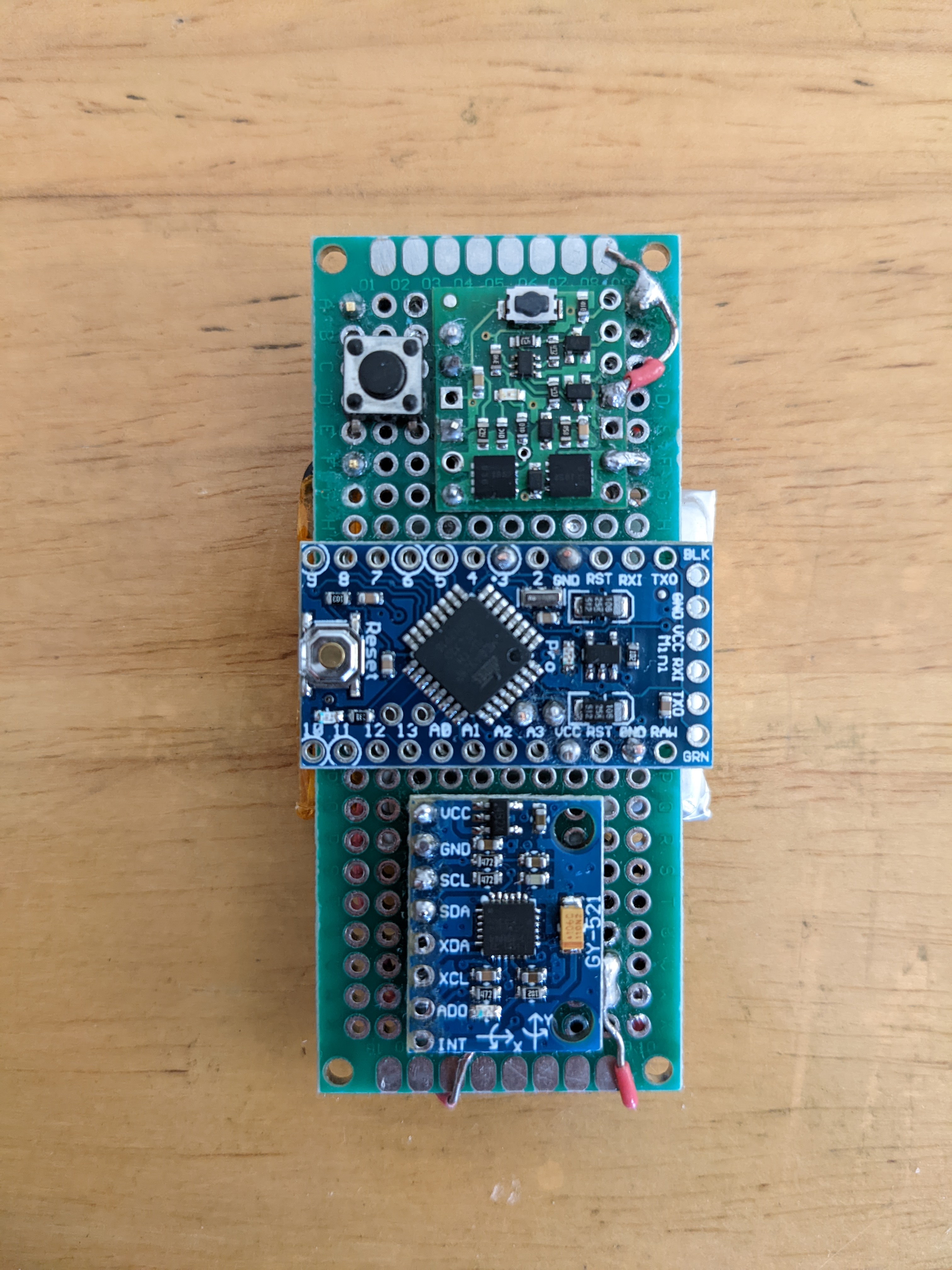

Device viewed from above

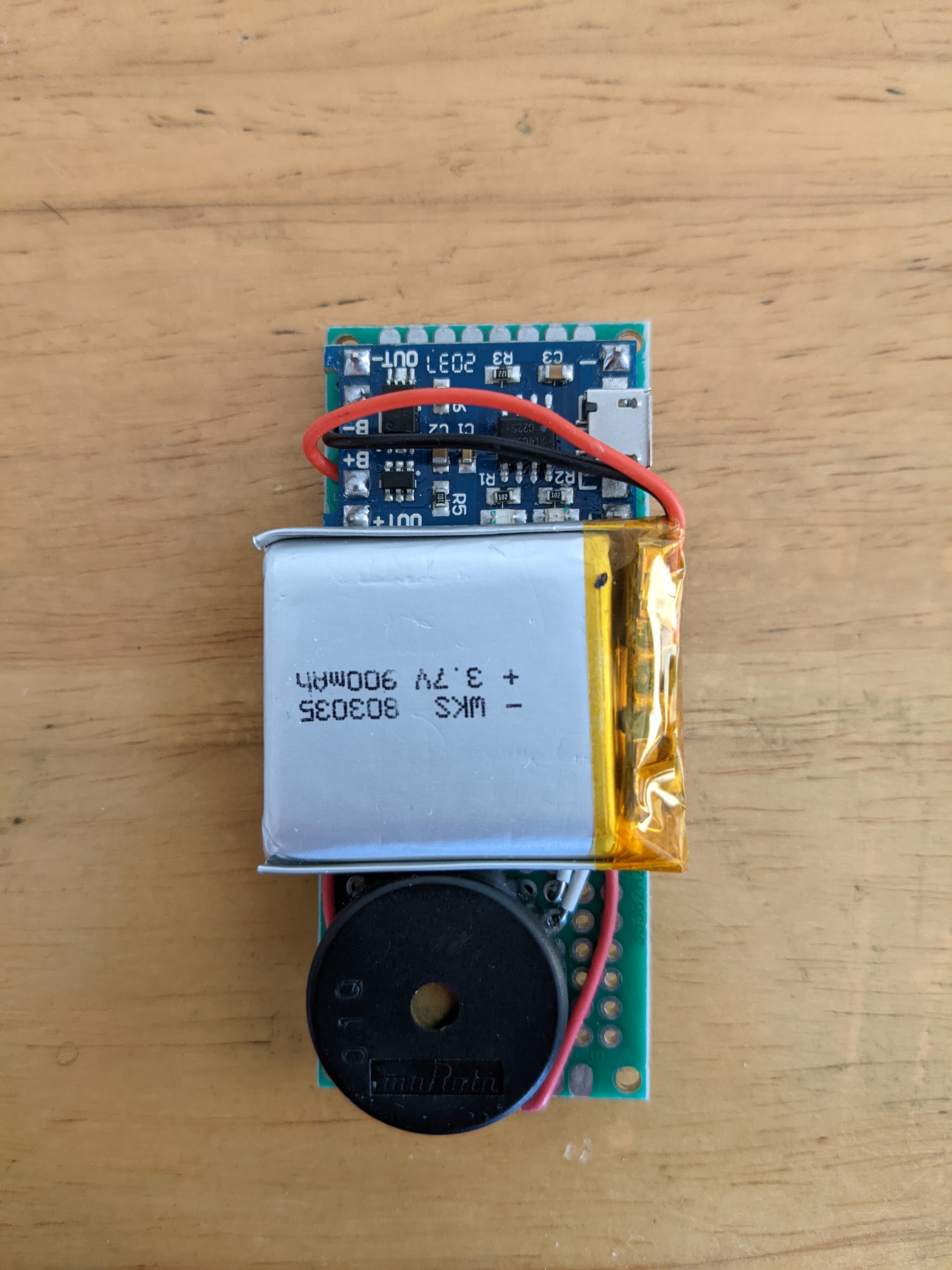

Device viewed from below

Assembled device viewed from above

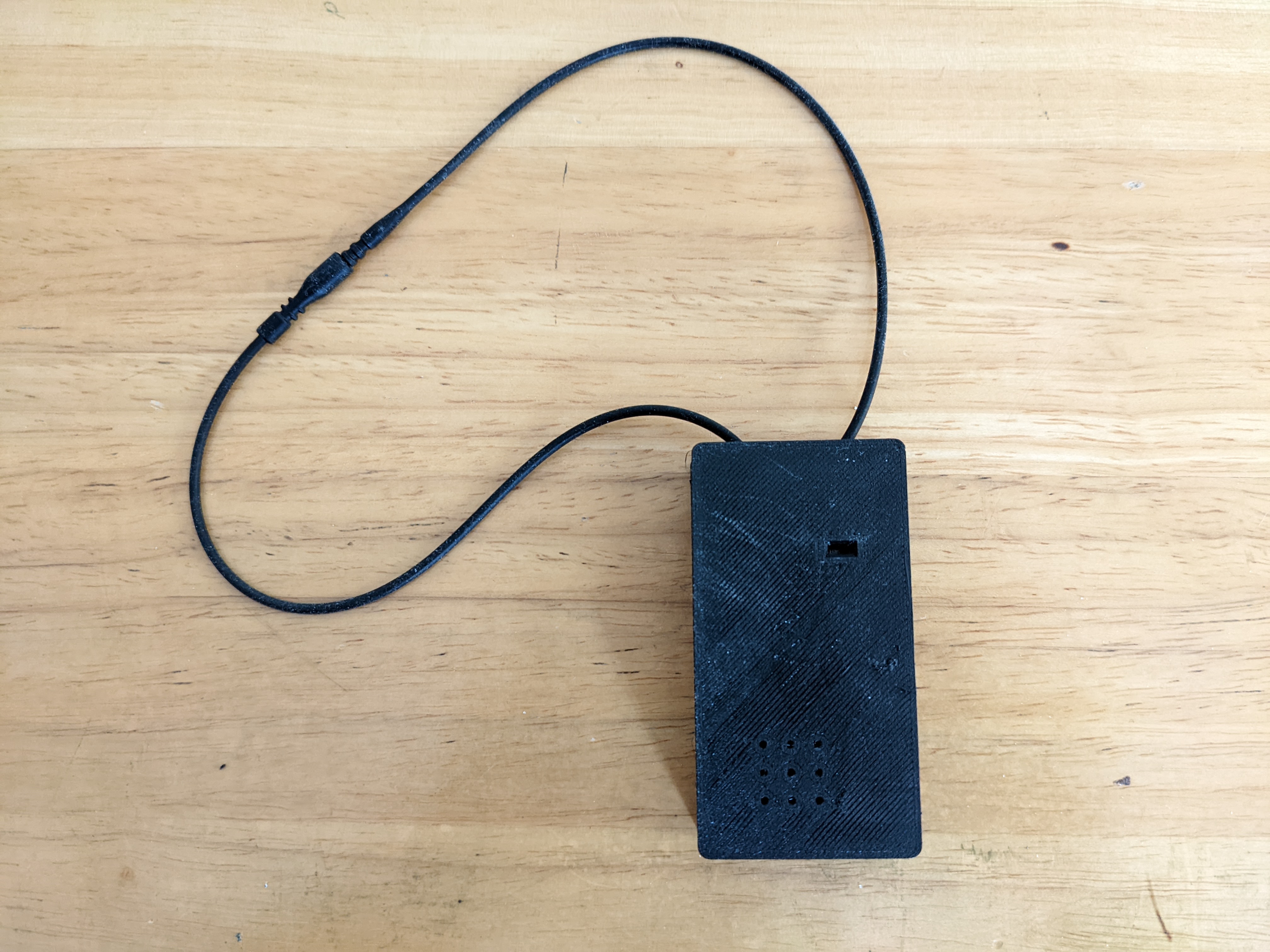

Assembled device viewed from below

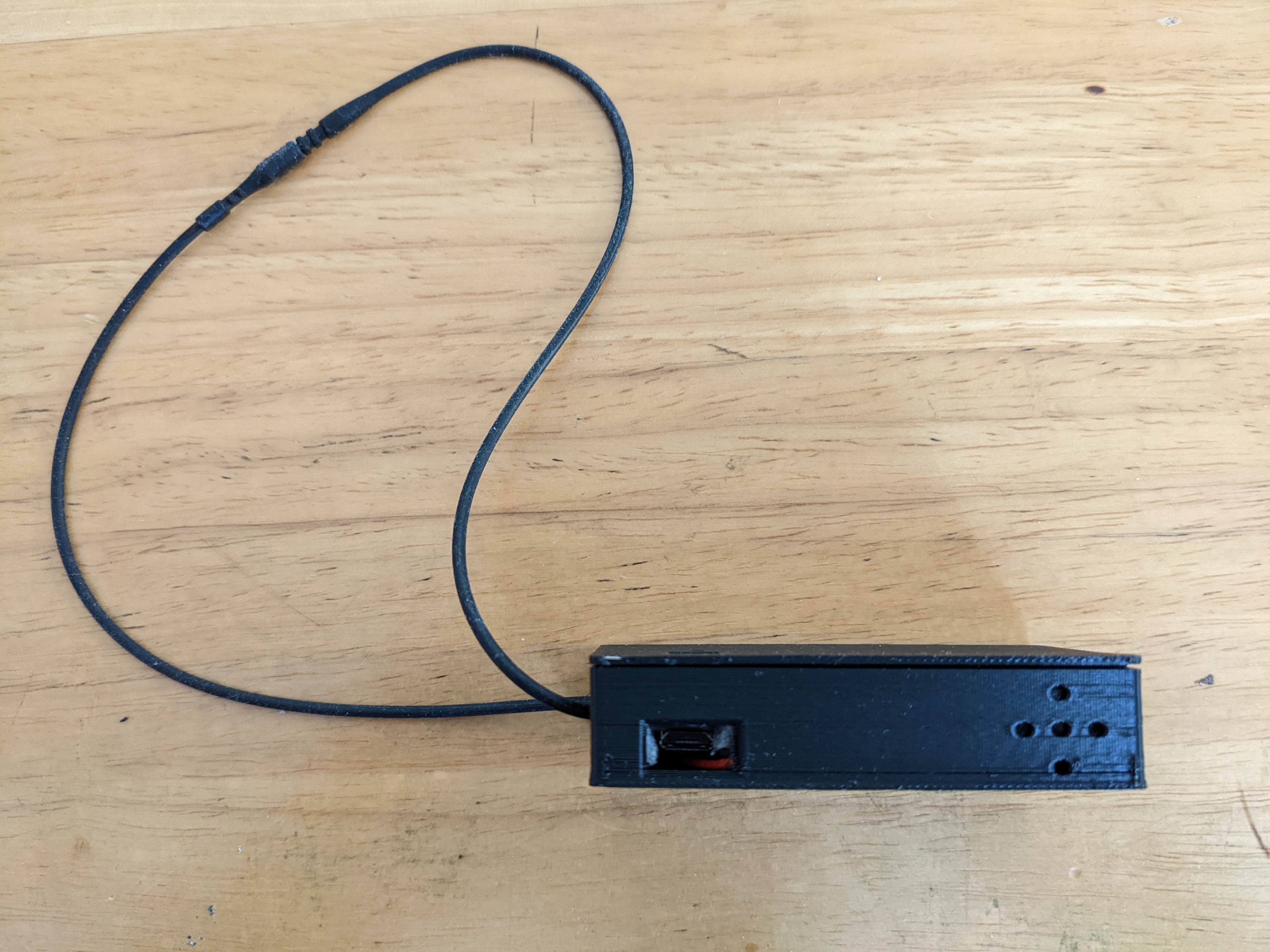

Assembled device viewed from the side

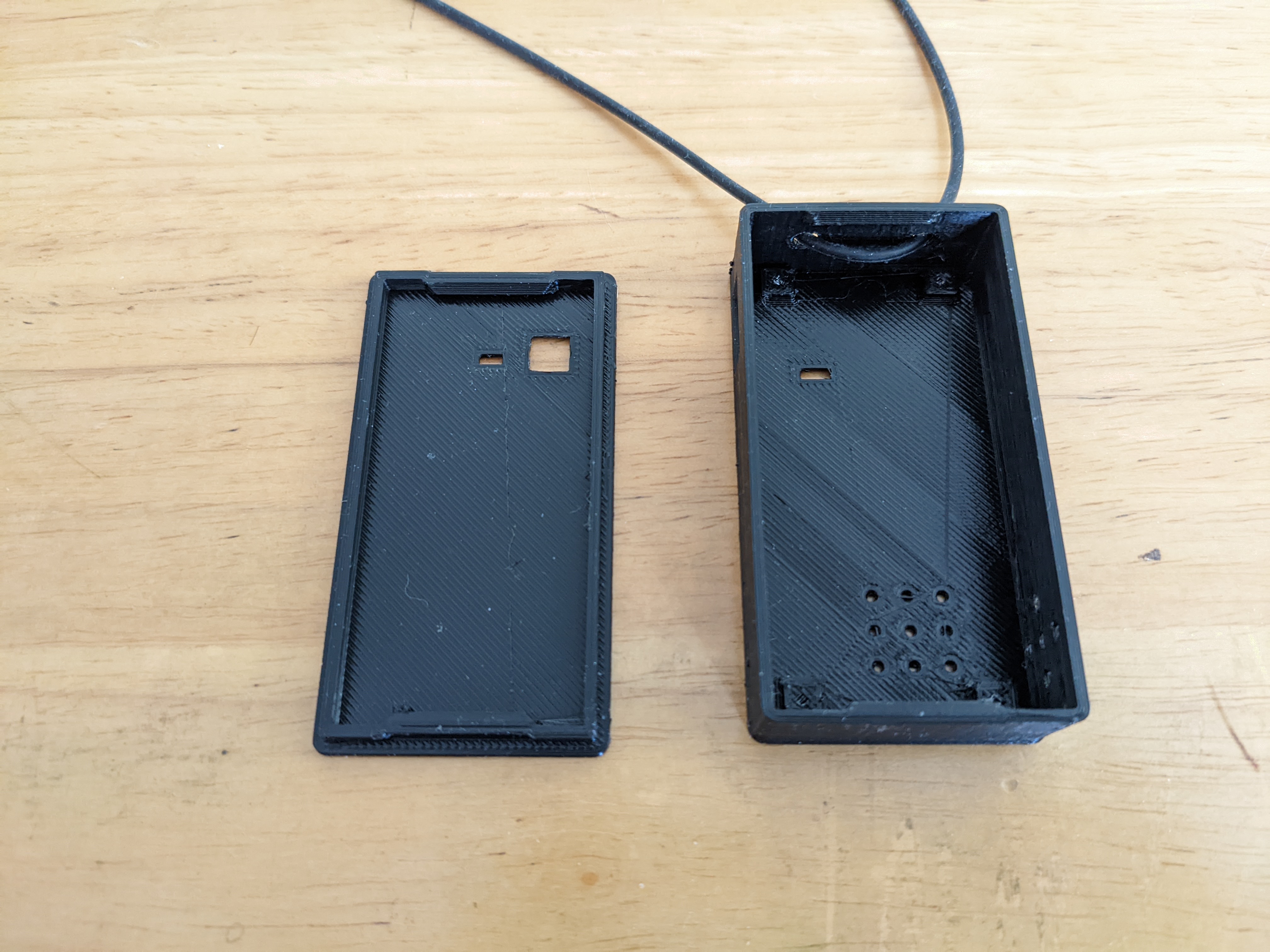

3D printed enclosure

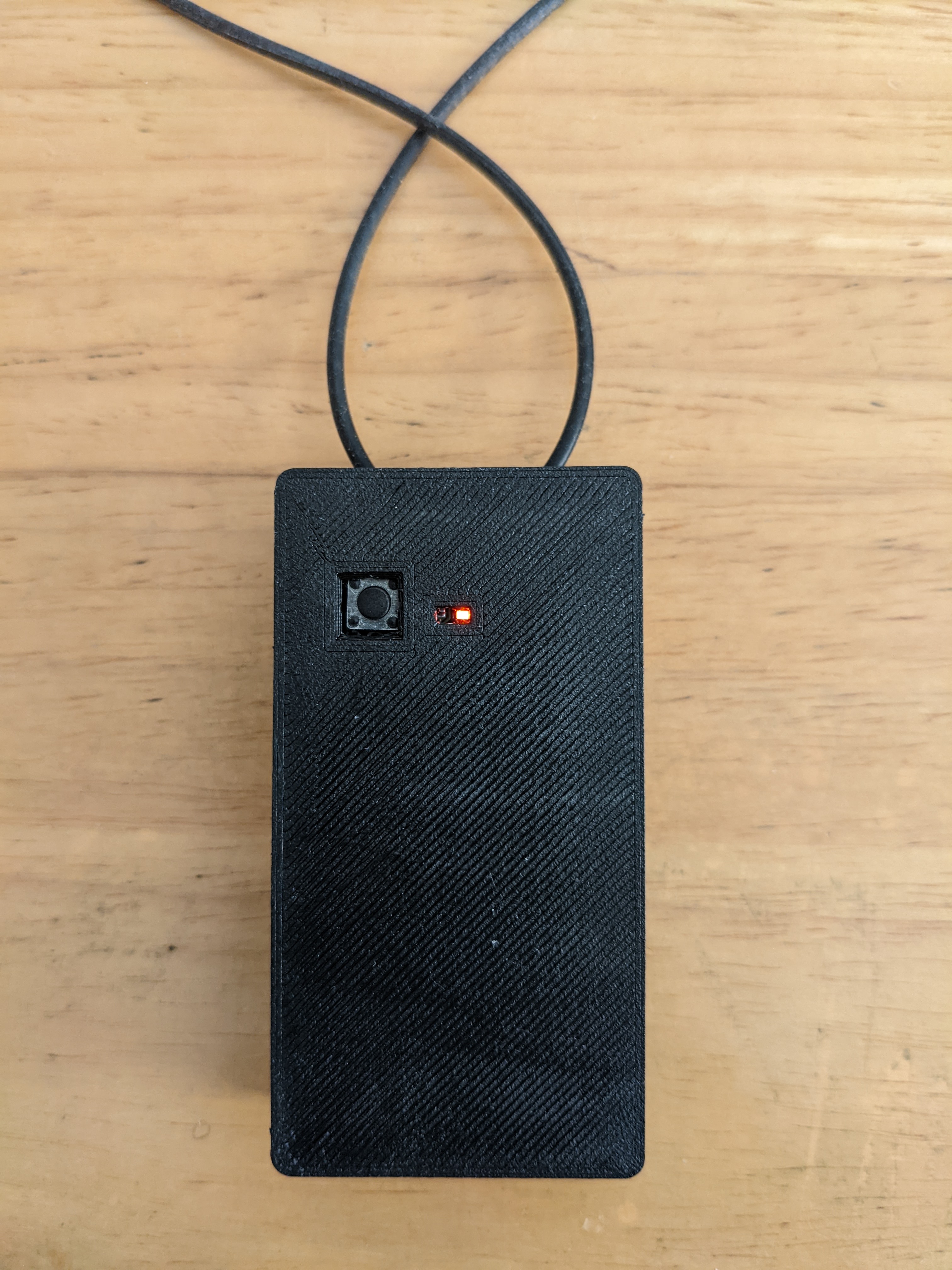

Power switch and indicator light

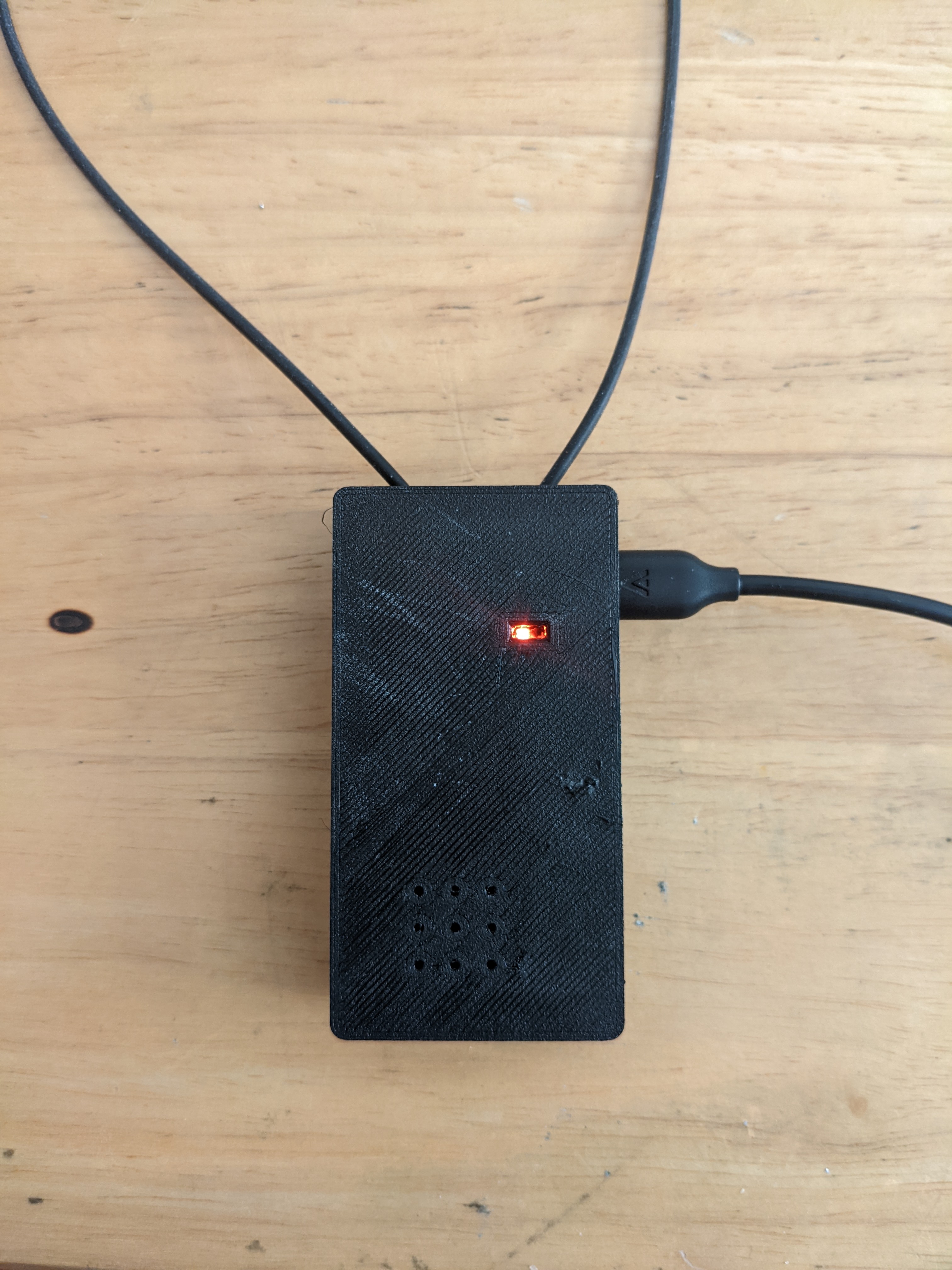

Charging indicator light


Demo


Turn up the volume to hear the buzzer.

Wearing the device

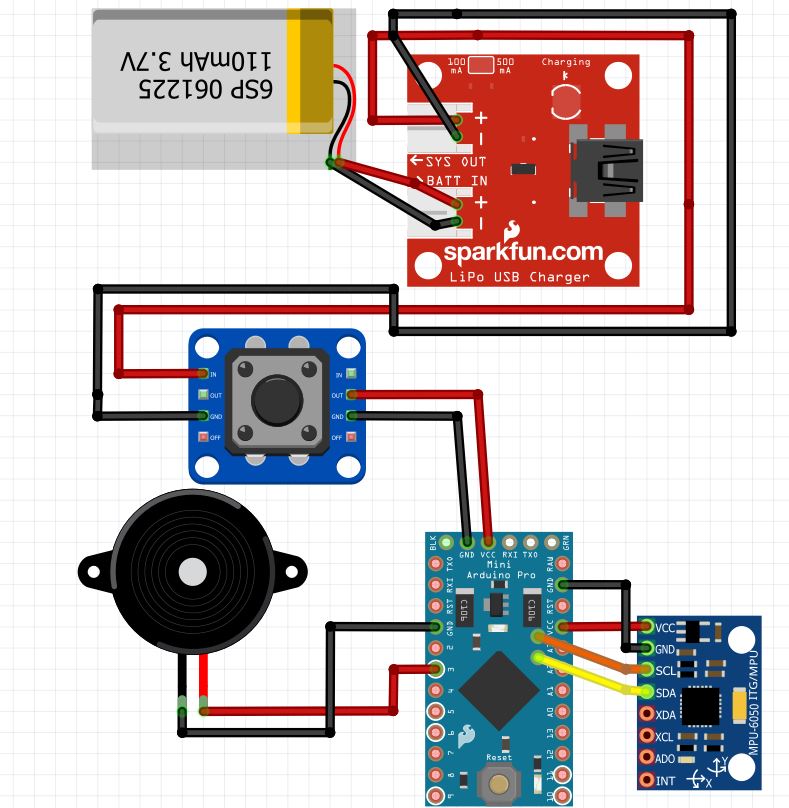

Schematic

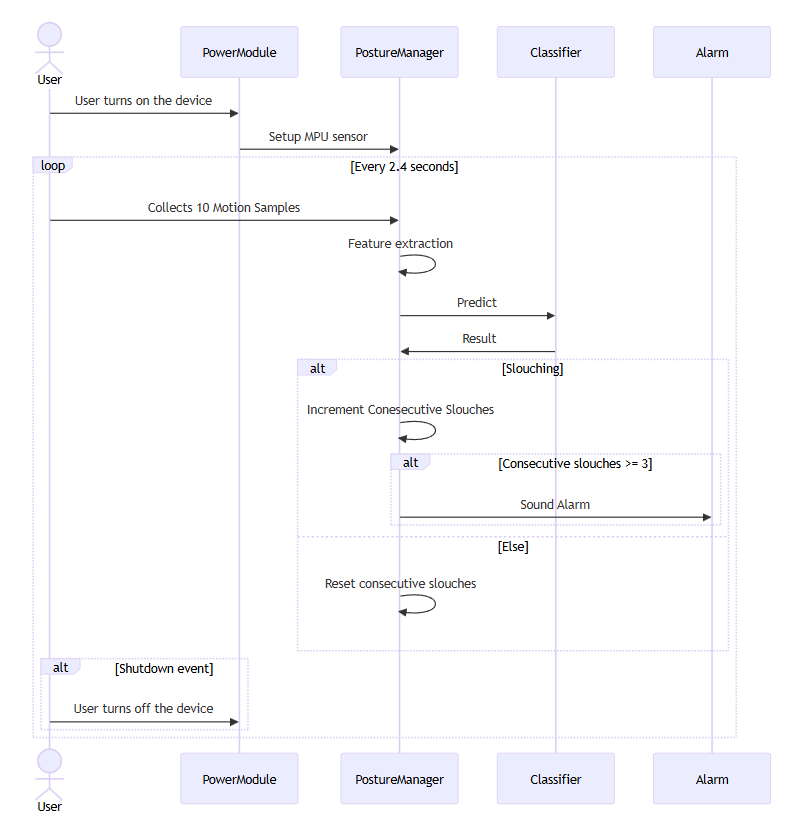

Sequence Diagram



Code and Setup


The code and setup instructions are in my GitHub repository.
